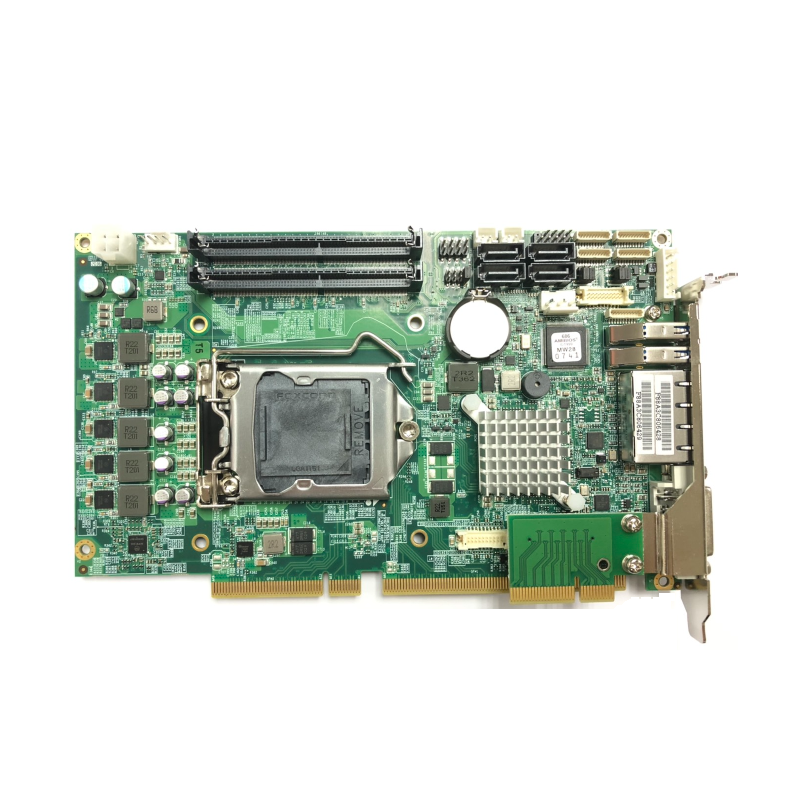

PIC688Q

Q170 Intel® 6th/7th Generation i7/i5/i3 LGA1151 processor ​
PICMG1.3 Half-size SBC

Main Features
  • Complies with PCIMG1.3 standard
  • Intel® 6th/7th Generation Intel® Core™ i7/i5/i3 LGA1151 processor
  • Max Octal core TDP 65W, PCH Q170
  • Up to 32 GB of dual-channel DDR4 2666 MHz
  • Support dual display DVI‐I(VGA , DVI‐D or HDMI) & DP
  • 2 x USB 3.1 , 4 x USB 2.0
  • 2 x RS232, 2x RS232/485/422
  • 2 x Intel® GbE LAN,  , 4 x SATAIII
  • Support SW Raid 0, 1, 5, 10
  • Multiple PCIe Gen3 Lanes , up to 30 port PCIe lanes
  • TPM (optional), WDT, DIO(4In/4Out)

Backplane Support List:

Q170: NBP1468, NBP1465, NBP1037, NBP1052,
          NBP06P2，NBP06E5，NBP05P2
